Snorkel Lifts - 600S All Terrain

600S ALL TERRAIN

  • Max. working height: 20.5m
  • Platform capacity (SWL): 272kg
  • Stowed Height: 2.61m
  • Weight: 13,027kg

Download Specifications (PDF)

Download Dual Envelope Lifting Capacities (PDF)

Snorkel GuardTM Brochure (PDF)

Request a Quote

The Snorkel 600S All Terrain telescopic boom lift is fitted with four independent rubber tracks. Easily tackling soft and sensitive environments, this boom lift offers superb maneuverability without sinking or disturbing the ground. Developed with a high torque hydraulic pump, it also has excellent gradeability and can climb gradients up to 45%.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Oscillating axle (8˝ of oscillation)
  • Hydraulic platform rotation
  • Hydraulic oil cooler
  • 4-track drive
  • All proportional controls
  • Swing-out engine tray
  • Motion alarm
  • Horn
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • 5º tilt alarm & cut out
  • Hour meter & on-board diagnostics display
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber light
  • Platform overload system
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

20.5m
Max Platform Height

18.5m
Max Horizontal Outreach

16.0m
Platform Size

2.44m x 0.91m
Transport width

2.24m
Overall Width

2.46m
Transport Length

9.2m
Overall Length

9.2m
Transport Height

2.61m
Stowed Height

2.61m
Ground Clearance

444mm
Platform capacity - unrestricted

272kg
Platform capacity - restricted

454kg
Max Drive Height

18.5m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

5.6 km/h
Max Drive Speed (elevated)

0.96 km/h
Jib Length

n/a
Jib Arc

n/a
Platform Rotation

150º
Superstructure Rotation (continuous)

360º
Raise/Lower Time

50/50 seconds
Tailswing

1.2m
Gradeability

45%
Inside Turning Radius

5.94m
Outside Turning Radius

8.38m
Tyres

independent rubber tracks
Controls

proportional drive, raise, slew, extend, jib and platform rotate
Drive System

4 track drive
Power Source

Deutz 74hp (55kW) turbo diesel – Tier 4 Final
Auxillary Power Unit

12V DC
Weight

13,027kg

Options

  • Special paint colors
  • Airline to platform
  • AC generator 110V/220V 2kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Glazier package
  • Light package
  • 10kW generator package
  • 10kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

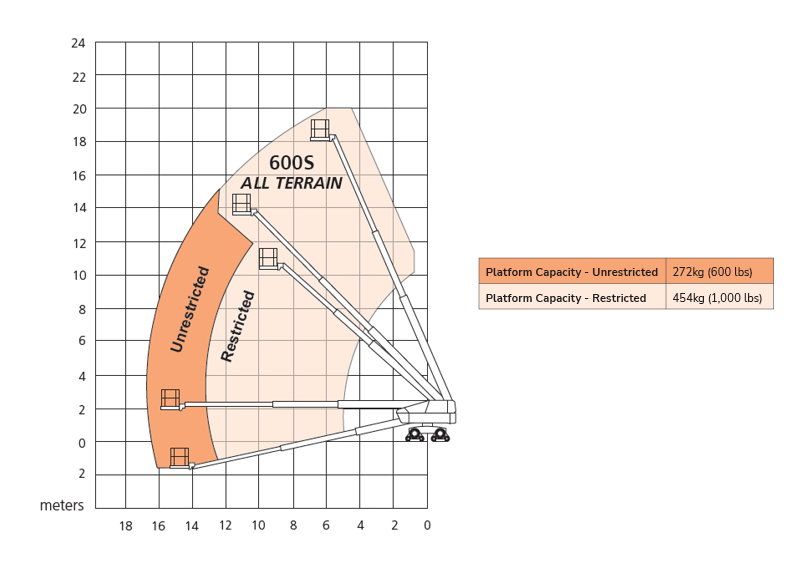

Working Envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
