A46JRT

  • Max. working height: 16.3m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 2.16m
  • Weight: 7,540kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

Request a Quote

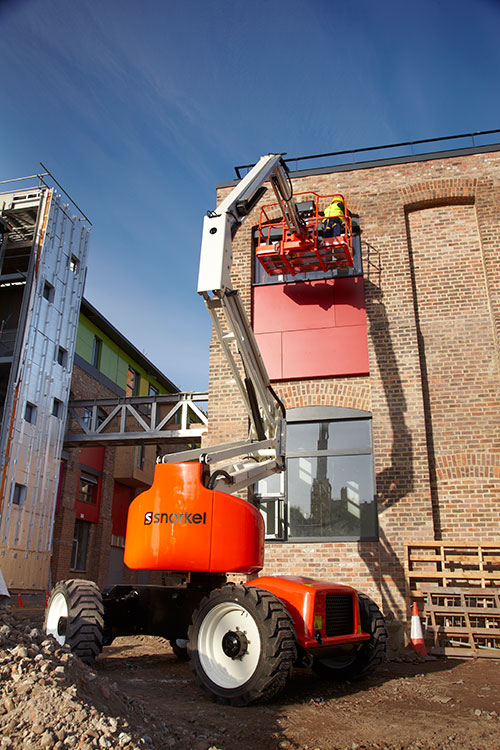

Class-leading diesel articulated boom lift delivering a superb working envelope and excellent 4 wheel drive performance. Zero tailswing and a tight turning radius make this lift ideal for working in confined spaces or on a busy jobsite, and the powerful diesel engine and high grip tyres ensure that the A46JRT can tackle almost any type of terrain.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Multi-function proportional controls
  • Oscillating front axle
  • Tri-entry platform
  • Foam filled lug tires
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Tilt alarm
  • Horn
  • Drive motion alarm
  • Flashing amber light
  • Platform overload system
  • Foam filled tires
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

16.3m
Max Platform Height

14.3m
Max Working Outreach

7.35m
Clearance Height at Max Outreach

7.67m
Platform Size

1.0m x 1.83m
Chassis Width

2.1m
Overall Length

5.7m
Stowed Height

2.16m
Ground Clearance

330mm
Platform Capacity (SWL)

227kg
Max Drive Height

14.3m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

6.8km/h
Max Drive Speed (elevated)

1.3km/h
Jib Length

1.5m
Jib Arc

140º
Platform Rotation

160º
Superstructure rotation

360º non continuous
Raise/Lower Time

101/98 seconds
Gradeability

45%
Inside Turning Radius

0.8m
Outside Turning Radius

3.17m
Tyres

High grip, foam-filled 355/55D625NHS 17.5
Controls

proportional
Drive System

4 wheel drive
Power Source

Kubota V1505 24.9hp diesel
Weight

7,540kg

Options

  • Special paint colors
  • AC generator 110V/240V 2kW
  • Airline to platform
  • Non-marking tire
  • Environmental hydraulic oil
  • 1.52m aluminum platform with swing gate
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Glazier package
  • Tool tray
  • Pipe rack
  • Utility package
  • Personal fall arrest system
  • Snorkel OnSite™ telematics

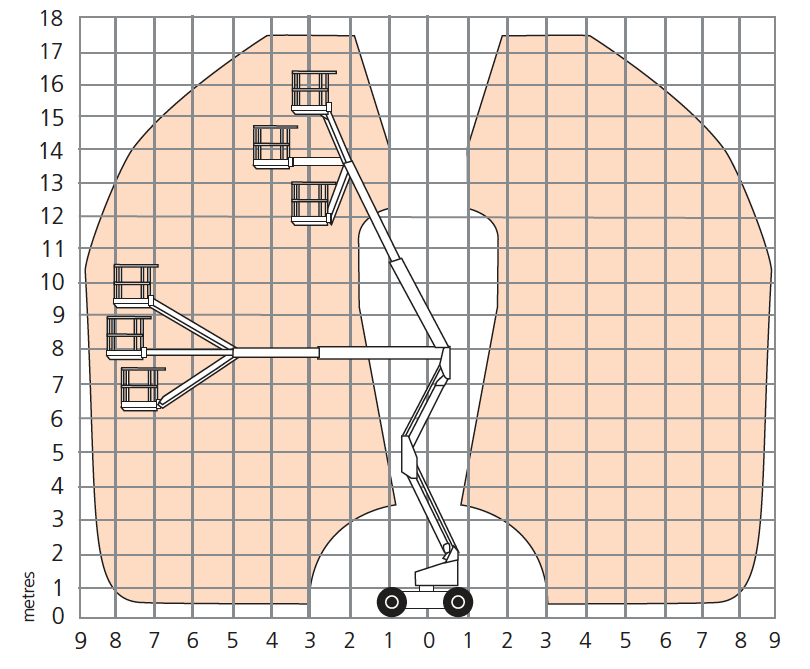

Working Envelope

A46JE-A46JRT-working-envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
