A62JRT-image

A62JRT

  • Max. working height: 20.8m
  • Platform capacity: 227kg
  • Stowed height: 2.6m
  • Weight: 11,300kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

Request a Quote

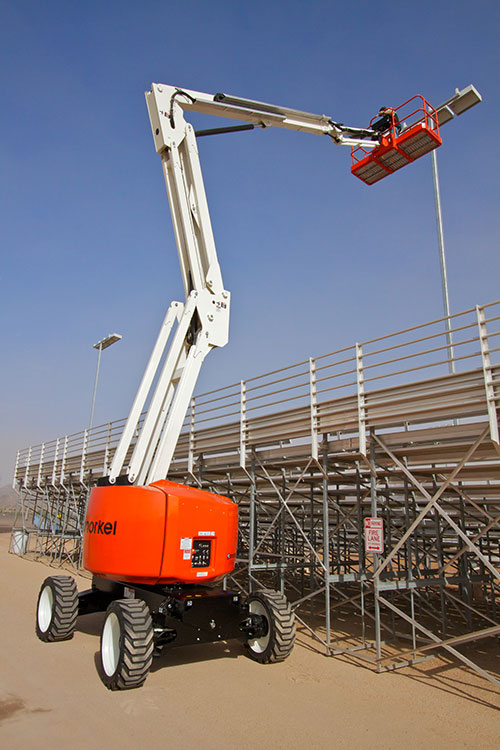

Launched in 2012, the Snorkel A62JRT is a high performance articulated boom lift, featuring a class-leading working envelope. With compact dimensions, zero tailswing and an ultra-tight turning radius, this lift is ideal for working in confined spaces, and also has powerful hydrostatic 4 wheel drive for tackling rough terrain jobsites. Ideal for construction and industrial applications.

STANDARD FEATURES

  • Snorkel Guard™ secondary guarding system
  • Powerful hydrostatic 4 wheel drive
  • Oscillating axle
  • Zero tailswing
  • Ultra-tight turning radius
  • Swing-out engine tray
  • Hour meter & on-board diagnostic display
  • Motion alarm
  • Horn
  • Power line to platform
  • Flashing amber light
  • Tri-entry platform
  • DC emergency operation
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

20.8m
Max Platform Height

18.8m
Max Working Outreach

11.1m
Clearance Height at Max Outreach

9.0m
Platform Size

2.44m x 0.91m
Overall Width

2.4m
Transport Length

8.5m
Overall Length

8.6m
Stowed Height

2.6m
Ground Clearance

350mm
Platform Capacity (SWL)

227kg
Max Drive Height

18.8m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

6.1 km/h
Max Drive Speed (elevated)

1.2 km/h
Jib Length

1.8m
Jib Arc

136º
Platform Rotation

180º
Turret Rotation

360º continuous
Tailswing

0m
Gradeability

45%
Inside Turning Radius

1.4m
Outside Turning Radius

4.6m
Tyres

355/55 D625 foam filled lug
Controls

multi-function, proportional drive, raise and slew
Drive System

4WD hydrostatic with oscillating axle
Power Source

Kubota V2403M 48kW/65hp – Interim Tier 4i
Weight

11,300kg

Options

  • Special paint colours
  • Airline to platform
  • AC generator 110V/240V 2kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Glazier package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Non-marking tyres
  • Snorkel OnSite™ telematics

Working Envelope

A62JRT-working-envelope

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
