| Max Working Height | 8.5m |
|---|---|
| Max Platform Height | 6.5m |
| Platform Size (stowed) | 1.4m x 2.73m |
| Platform Size (extended) | 1.4m x 3.93m |
| Extension Deck Length | 1.2m |
| Overall Width | 1.45m |
| Overall Length | 3.3m |
| Stowed Height | 2.35m |
| Min Height (guardrails folded) | 2.0m |
| Ground Clearance | 260mm |
| Platform Capacity (SWL) | 420kg |
| Max Drive Height | 6.2m |
| Max Wind Speed | 12.5m/s |
| Max Drive Speed (stowed) | 5.2km/h |
| Max Drive Speed (elevated) | 0.66km/h |
| Raise/Lower Time | 26/30 sec |
| Gradeability | 35% |
| Max Outrigger Leveling (front to rear) | 6º |
| Max Outrigger Leveling (side to side) | 10º |

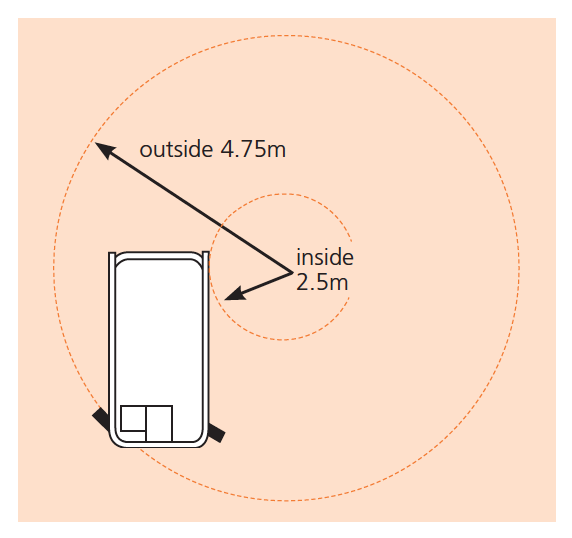

| Inside Turning Radius | 2.5m |
| Outside Turning Radius | 4.75m |
| Tires | 0.58m x 0.22m – 12 non-marking |
| Controls | proportional joystick |
| Drive System | 4 wheel drive |
| Power Source | Kubota diesel engine |
| Weight | 2,410kg |
All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.
To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.
Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.
Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
