S2770BE

  • Max. working height: 10.1m
  • Platform capacity (SWL): 580kg
  • Stowed Height: 2.61m
  • Weight: 3,186kg

Download Specifications (PDF)

Request a Quote

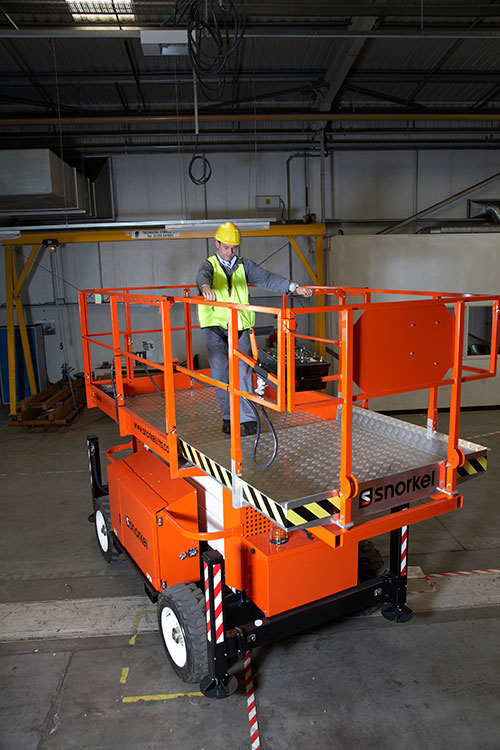

The Snorkel S2770BE is a compact scissor lift which can be operated on either its diesel engine, for outdoor rough terrain work, or switched to DC electric for working indoors. Fitted with high grip, non-marking types as standard, the S2770BE provides the ultimate in jobsite flexibility.

Standard Features

  • DC & diesel power – for indoor & outdoor work
  • 4 wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
Max Working Height

10.1m
Max Platform Height

8.1m
Platform Size (stowed)

1.6m x 2.8m
Platform Size (extended)

1.6m x 4.0m
Deck Extension

1.2m
Overall Width

1.8m
Stowed Length

3.4m
Stowed Height

2.61m
Min Height (guardrails folded)

1.83m
Ground Clearance

330mm
Platform Capacity (SWL)

580kg
Max Drive Height

8.1m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

4.5 km/h
Max Drive Speed (elevated)

0.5 km/h
Raise/Lower Time

26/30 sec
Gradeability (engine)

35%
Gradeability (battery)

25%
Max Outrigger Leveling (front to rear)

6º
Max Outrigger Leveling (side to side)

10º
Inside Turning Radius

2.7m
Outside Turning Radius

5.0m
Tyres

27 x 10.5 foam filled, non-marking
Controls

proportional joystick
Drive System

4 wheel drive
Power Source

Kubota D-902 water cooled diesel 22.5 hp – Tier 4 Final & 4 x 6v 305Ah batteries
Weight

3,186kg

Options

  • Special paint colors
  • Hydraulic generator 110V 2kW
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm up)
  • Snorkel OnSite™ telematics

Turning Radius

Snorkel S2270BE/S3370BE/S3970BE turning radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
