S3019E

  • Max. working height: 7.79m
  • Platform capacity (SWL): 250kg
  • Stowed Height: 1.76m
  • Weight: 1,581kg

Download Specifications (PDF)

The Snorkel S3019E self-propelled electric scissor lift stacks the deck. This all-electric lift features a sunken scissor stack that stows inside the chassis, offering a low step-in height. Compact and nimble, its slim design easily fits through doorways and on passenger elevators.

Standard Features

  • All electric drive
  • Electric steer
  • No hydraulic hoses
  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoors
  • 1 person outdoors
  • Proportional controls, including descent
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

7.79m

Max Platform Height

5.79m

Platform Size (stowed)

0.61m x 1.69m

Platform Size (extended)

0.61m x 2.6m

Extension Deck Length

0.91m

Overall Length (with step)

1.91m

Overall Width

0.77m

Stowed Height

1.76m

Ground Clearance (stowed)

76mm

Ground Clearance (elevated)

15mm

Platform Capacity (SWL)

250kg

Max Drive Height

5.79m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

2.4km/h

Max Drive Speed (elevated)

0.8 km/h

Raise/Lower Time

30 / 44 seconds

Gradeability

25%

Inside Turning Radius

0

Outside Turning Radius

1.77m

Tyres

323mm x 102mm non-marking solid rubber

Controls

proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

1,588kg

Options

  • Special paint colors
  • Airline to platform
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

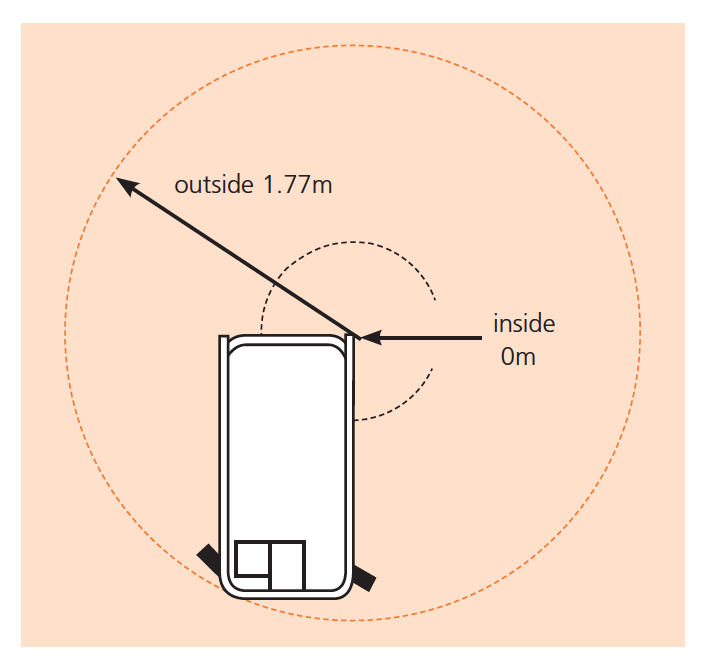

Turning Radius

S3019E-turning-radius

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
