S4740E

Max. working height: 14.0m
Platform capacity (SWL): 250kg
Stowed Height: 2.56m
Weight: 3,100kg

Request a Quote

Features
Specs
Options
Turning Radius
Warranty

The Snorkel S4740E is the only Snorkel electric scissor lift with available hydraulic and electric drive. Durable lead acid batteries provide long-lasting performance. The rugged and robust S4740E features a variable tilt system suitable for indoor and outdoor use.

Standard Features

Hydraulic drive
Roll-out deck extension with dual locks
Non-marking tires
Swing-out service trays
Saloon-door style entry gates
Descent alarm
All motion alarm
2 persons indoor
1 person outdoor
Proportional controls, including descent
Power line to platform
Flashing amber light
Loading pendant
Hour meter & on-board diagnostics display
Integrated battery charger
Battery condition indicator
Crane & forklift points
Dual lanyard attachment points
Scissor stack roller slide plates (set of 2)
2 year parts & labor, 5 year structural warranty

Max Working Height	14.0m
Max Platform Height	12.0m
Platform Size (stowed)	1.09m x 2.14m
Platform Size (extended)	1.09m x 3.36m
Extension Deck Length	1.21m
Overall Length (with step)	2.3m
Overall Length (without step)	2.26m
Overall Width	1.19m
Stowed Height	2.56m
Min Height (guardrails folded)	1.93m
Ground Clearance (stowed)	66mm
Ground Clearance (elevated)	19mm
Platform Capacity (SWL)	250kg
Max Drive Height	12.0m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	3.2 km/h
Max Drive Speed (elevated)	0.6 km/h
Raise/Lower Time	68/72 sec
Gradeability	25%
Inside Turning Radius	0.53m
Outside Turning Radius	2.41m
Tyres	15 x 5 non-marking rubber
Controls	proportional
Drive System	2 wheel drive
Power Source	24V DC battery electric
Charger	90 – 240V, 25amp
Weight	3,251kg

Options

Special paint colors
Electric drive
Airline to platform
Aircraft bumpguard package
110V AC 800W inverter
Environmental hydraulic oil
Snorkel OnSite™ telematics

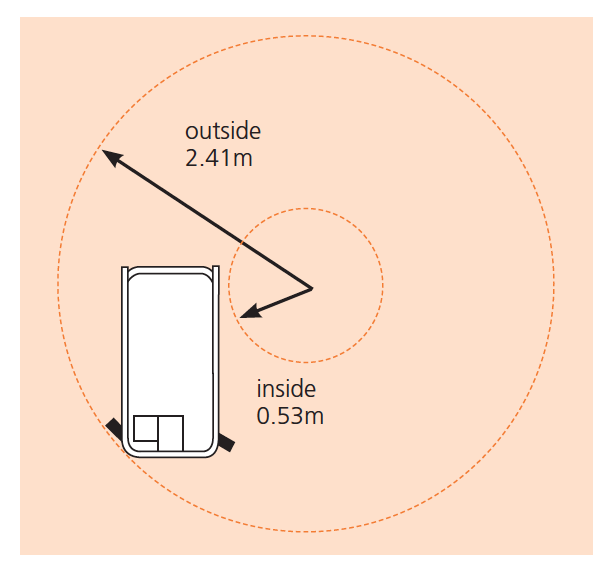

Turning Radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
