S9070RT-HC

Max. working height: 23.3m
Platform capacity (SWL): 907kg
Stowed Height: 3.43m
Weight: 11,566kg

Features
Specs
Options
Turning Radius
Warranty

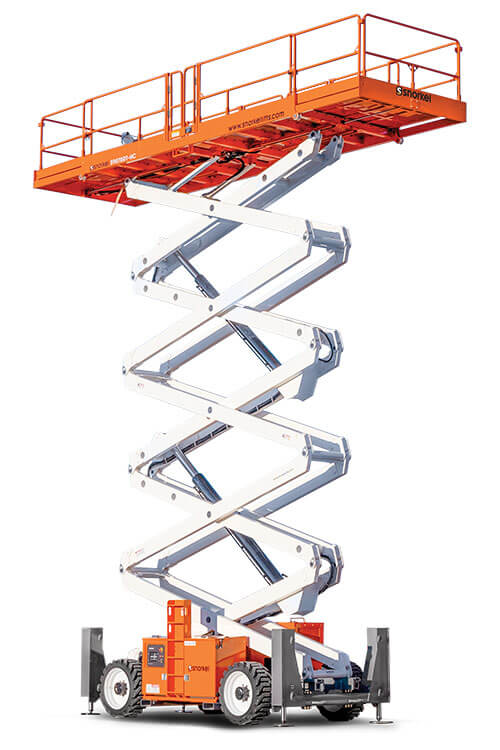

The Snorkel S9070RT-HC is the largest ultra-capacity rough terrain scissor lift in North America. Featuring a twin extension deck as standard, it combines a large platform working area with an extra-wide pallet gate and high lifting capacity for increased productivity on the job. Added rough terrain capabilities makes the S9070RT-HC a premier performer on all jobsites.

Standard Features

4 wheel drive
Dual powered extension decks
4 hydraulic stabilizers with automatic leveling
Foam filled tires
Proportional controls
Power line to platform
Platform overload system
Drive motion alarm
Descent alarm
Fold-down guardrails
Flashing amber light (x2)
Locking, oscillating axle
Hour meter & on-board diagnostics display
Manual lowering valve
Dual lanyard attachment points
2 years parts & labor, 5 year structural warranty

Max Working Height	23.3m
Max Platform Height	21.3m
Platform Size (stowed)	5.49m x 2.28m
Platform size (dual deck extended)	2.28m x 8.23m
Extension Deck Length	1.37m
Overall Width	2.28m
Overall Length	4.87m
Stowed Height	3.43m
Min Height (guardrails folded)	2.5m
Ground Clearance	356mm
Platform Capacity (SWL)	907kg
Max Drive Height	13.1m
Max Wind Speed	12.5m/s
Max Drive Speed (stowed)	6.7km/h
Max Drive Speed (elevated)	0.96km/h
Raise/Lower Time	70/40 sec
Gradeability	50%
Max Outrigger Leveling (front to rear)	6º
Max Outrigger Leveling (side to side)	14˚
Inside Turning Radius	2.4m
Outside Turning Radius	5.6m
Tires	13 x 36 foam filled
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota diesel
Weight	11,566kg

Options

Special paint colors
Hydraulic generator 110V 2kW
12kW generator package
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Dual fuel
Non-marking foam filled tires
Cold weather package (block heater + battery warm up)
Snorkel OnSite™ telematics

Turning Radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
