SA11P

EQUIPMENT STANDARD

• Quickly removable aluminum basket
• Removable jib
• Basket rotation
• Blue Lithium pack
• i-Performing electric pump (patented) with auto Start/Stop system
• Radio remote control with interactive and multi-lingual display
• Moment limiting device
• Automatic center position of turret
• Proportional and simultaneous electro-hydraulic controls
• Proportional track drive with hydraulic breaking system
• Drive speed system with safety control.
• Driving lateral slope alarm with safety stop
• Driving possible with jib boom raised (with selector)
• Interblock outriggers/booms
• Emergency push-button with engine stop
• Simple emergency lowering procedure
• Electric pump for the emergency lowering of platform
• Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
• Modem connection plug for diagnosis/software upgrading in remote
• Produced according to EN280 norm and international safety regulation
• Track width adjusting system

Max Working Height	10.8 m
Max Horizontal Outreach	5.3 m / 200 kg, 6.2 m / 120 kg
Basket Capacity	200 kg
Basket Dimension	1.3m x 0.7m x 1.1m
Turret Rotation	160°
Overall Weight	1535 kg, 1295 kg (jib-LIFT unit detached), 3350 kg
Travel Speed	1.5 km/h
Max Gradeability	28%
Electric Motor	230V/110V – 2.2 kW

Options

• Self-stabilizing system
• No-marking crawlers
• Go-Home function
• Custom paint work

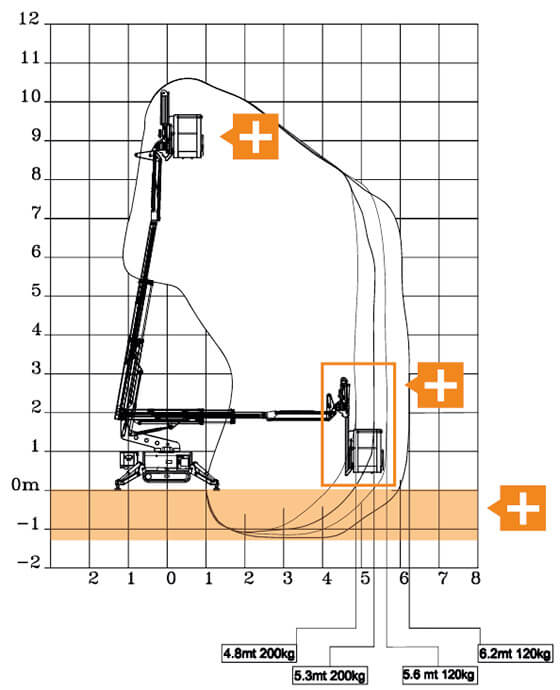

Load Chart

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.

For more information, contact your sales representative.
