TB126J

  • Max. working height: 40.4m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 3.2m
  • Weight: 19,000kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

Request a Quote

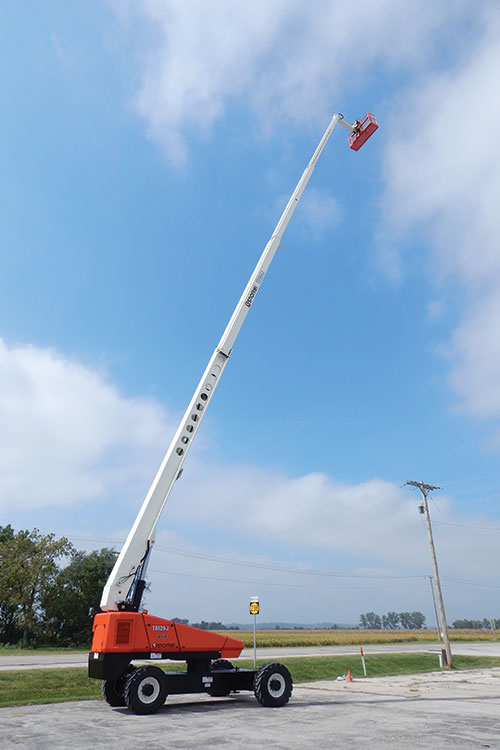

The Snorkel TB126J is the largest telescopic boom lift in the Snorkel product range. Designed to lift 227kg to a working height of 40.4m, it is equipped with a jib boom for added flexibility, high performance 4 wheel drive, a hydraulic powered extending rear axle and an envelope management system.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 2.0m 135º jib
  • 4-wheel drive, braking & fixed front steering
  • Hydraulic platform rotation
  • 360º continuous turntable rotation
  • Hydraulic extended rear axles w/ boom interlocks
  • Built-in jack for raising chassis
  • Flashing amber light
  • Proportional drive, boom lift, swing, extend + jib (if equipped)
  • Dual lanyard attachment points
  • Foam filled tires
  • Power line to platform
  • 3.5º tilt & cut out
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

40.4m
Max Platform Height

38.4m
Max Working Outreach

19.2m
Platform Size

2.44m x 0.91m
Overall Width

2.6m
Operational Width

3.9m
Overall Length

13.6m
Stowed Height

3.2m
Ground Clearance

330mm
Platform Capacity (SWL)

227kg
Max Drive Height

38.4m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

4.6 km/h
Max Drive Speed (elevated)

0.24 km/h
Jib Length

2.0m
Jib Arc

135º (+70º/-65º)
Platform Rotation

180º
Turret Rotation

360º
Tailswing (axles retracted)

2.04m
Tailswing (axles extended)

1.38m
Raise/Lower Time

208/215 seconds
Gradeability

30%
Inside Turning Radius

5.8m
Outside Turning Radius

10.1m
Tyres

445-65 D22.5 foam filled lug
Controls

proportional joystick
Drive System

4 wheel drive
Power Source

Kubota V2403 48kW/59hp diesel – Tier 4 Final
Weight

19,000kg

Options

  • Special paint colors
  • Airline to platform
  • AC generator 110V/2.5kW
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • 12kW generator package
  • 12kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Non-marking tires
  • Snorkel OnSite™ telematics
  • Personal fall arrest system

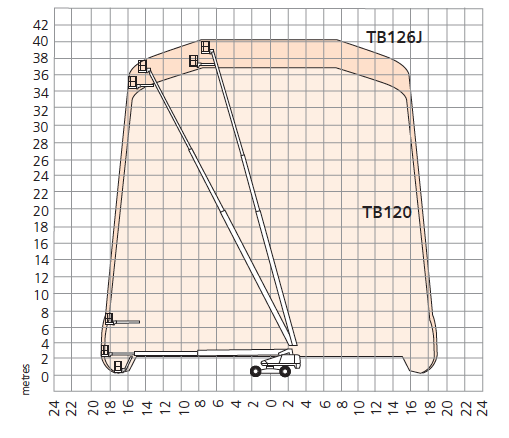

Working Envelope

TB120-TB126J-working-environment

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
