Snorkel TM12

TM12

  • Max. working height: 5.6m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 1.62m
  • Weight: 830kg

Download Specifications (PDF)

Request a Quote

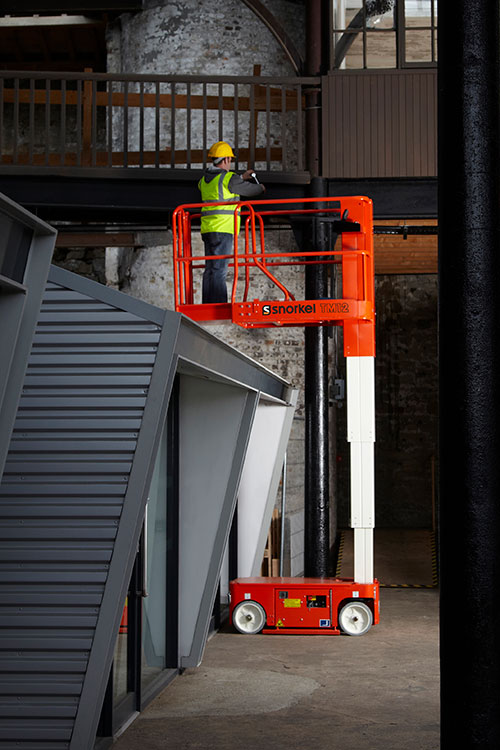

The Snorkel TM12 is the original self-propelled telescopic mast lift. Compact dimensions for easy maneuvering, the TM12 can be driven through a standard doorway and carried in a passenger elevator. This highly versatile mast lift includes a roll-out deck extension as standard to lift two people with tools.

Standard Features

  • Roll-out deck extension
  • Hydraulically powered descent
  • Proportional controls
  • Saloon-door style entry gates
  • Descent and tilt alarms
  • Emergency lowering at chassis controls
  • Non-marking rubber tyres
  • Crane lift points
  • Horn
  • 2 persons indoor
  • 1 person outdoor
  • Selectable motion alarm
  • Integrated battery charger 90V-240V 25A
  • Hour meter & on-board diagnostics display
  • year parts & labour, 5 year structural warranty
Max Working Height

5.6m
Max Platform Height

3.6m
Platform Size (stowed)

0.74m x 0.96m
Platform Size (extended)

0.74m x 1.46m
Extension Deck Length

0.5m
Overall Width

0.76m
Overall Length

1.34m
Stowed Height

1.62m
Ground Clearance

76mm
Platform Capacity (SWL)

227kg
Max Drive Height

3.6m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

3.2km/h
Max Drive Speed (elevated)

0.43km/h
Raise/Lower Time

16/19 seconds
Gradeability

25%
Max Operating Slope (side to side)

1.5º
Max Operating Slope (front to back)

2º
Inside Turning Radius

0.36m
Outside Turning Radius

1.55m
Tyres

279mm non-marking rubber
Parking Brake

2-wheel, spring-applied, hydraulically-released with manual overdrive
Drive System

dual front hydraulic motors
Controls

proportional
Power Source

24V 4hp DC electric motor 4-220 Ah batteries
Battery Charger

18 amp
Weight

830kg

Options

  • Special paint colors
  • Environmental hydraulic oil
  • 2° side to side operating slope upgrade (machine weight 910kg)
  • Snorkel OnSite™ telematics

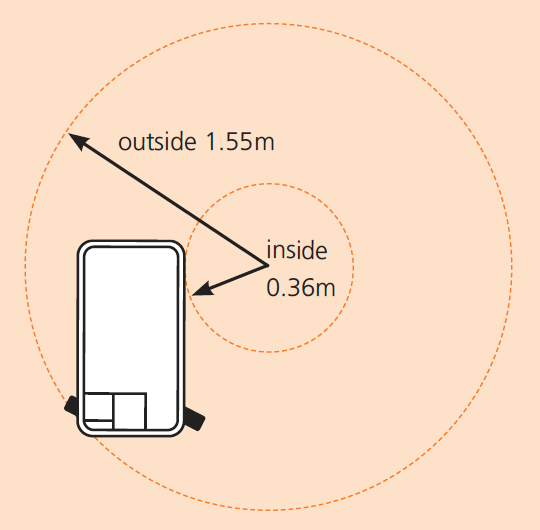

Turning Radius

Snorkel TM12 Turning Radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
