Snorkel UL25

UL25

  • Max. working height: 9.6m
  • Overall width: 0.74m
  • Platform capacity (SWL): 159kg
  • Weight(AC): 390kg

Download Specifications (PDF)

Request a Quote

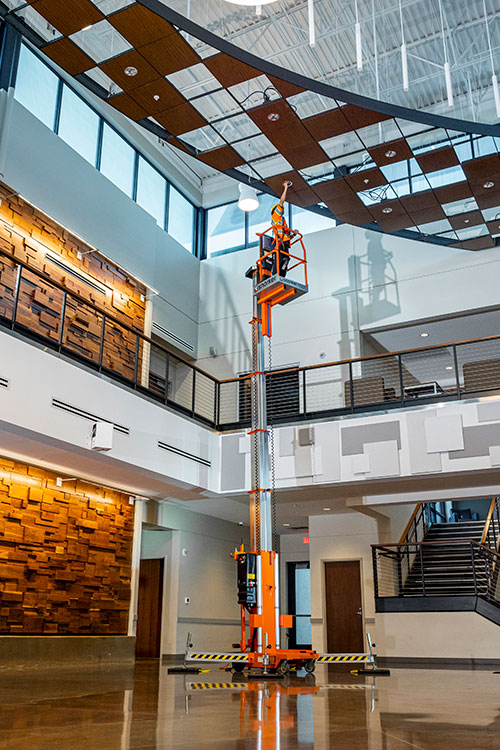

The Snorkel UL25 is a robust push-around mast lift, which safely lifts one person plus tools to a working height of 9.6m. The lift can be easily pushed to position, and can be tilted back to pass through a standard doorway. The patented ‘Girder Lock’ telescopic mast design ensures a very stable working platform, and the lift also features an easy loader system for flatbed vehicle transport between sites.

Standard Features

  • Patented girder lock telescopic mast system
  • Integrated tilt-back system
  • Ground level entry
  • EZ Loader system for transport
  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels & casters
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

9.6m
Max Platform Height

7.6m
Platform Length

0.56m
Platform Width

0.66m
Outrigger Footprint

2.06m x 1.99m
Overall Width

0.74m
Overall Length

1.26m
Stowed Height

1.99m
Tilt Back Height

1.95m
Tilt Back Length

2.6m
Platform Capacity (SWL)

159kg
Max Wind Speed

0m/s
Raise/Lower Time

43/23 seconds
Wheels

250mm x 64mm rear, 150mm casters front
Controls

push button
Wall Access

356mm
Power Source (AC)

120/220V AC 50HZ
Power Source (DC)

1 X 12V 105Ah battery
Weight (AC)

390kg
Weight (DC)

420kg

Options

  • Special paint colors
  • Tool tray
  • Laser locator
  • Environmental hydraulic oil

Outrigger Footprint

UL Series outrigger footprint

Video

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Chile is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
