- 360° operator visibility
- Ductile steel manifold
- Suspension seat
- Easy cab mounted grab handles
- Easy service access
- Master disconnect switch
- Protected tilt & extend cylinders
- Boom lift point
- Steel hydraulic & fuel tanks
- Manual lowering valve (cylinders)
- Long life Lexan labels
- Large cross section boom
- Heavy duty boom chains
- Easy tie downs
- Suspended pedals
- ˝Y˝ frame handle
- Large capacity fuel tank
- Heavy duty pre-cleaner
- Trunnion mounted sway cylinders
- Additional high pressure hydraulic filter
- Melonite pins
- Individual gauges/switches
- Standard auxiliary hydraulics
- Steel hood Steel dash
- Solid steel plate chassis
- Center mounted powertrain
- Rear axle stabilization (RAS)
- Long life boom rollers
- Wider outrigger stance
- Dual batteries
- Back up alarm with light
- Cab step
- Electrical aux hydraulic control
XR1247-B
| Capacity Weight | 5,443kg |
|---|---|
| Lift Height | 14.3m |
| Forward Reach | 9.6m |
| Frame Leveling L/R | 11° |
| Machine Weight | 16,873kg |
| Engine | 120 hp (Tier 4F) |
| Axle | Dana 213 |
| Transmission | Dana T20000 |
| Fuel Capacity | 189.2L |
| Tires | Foam Filled 15.5 x 25 |
| Hydraulic Flow (per min) | 185.4L |
| Hydraulic Pressure | 241.3bar |
| Hydraulic Oil Capacity | 234.7L |
| Length to Fork Face | 6.47m |
| Width | 2.56m |
| Height | 2.46m |
| Wheel Base | 3.18m |
| Ground Clearance | 419mm |
| Turning Radius | 3.66m |
Options
Cab Options
Options
Carriages
Fork Tines
Tires
Xtreme OnSite™ Telematics
Attachments

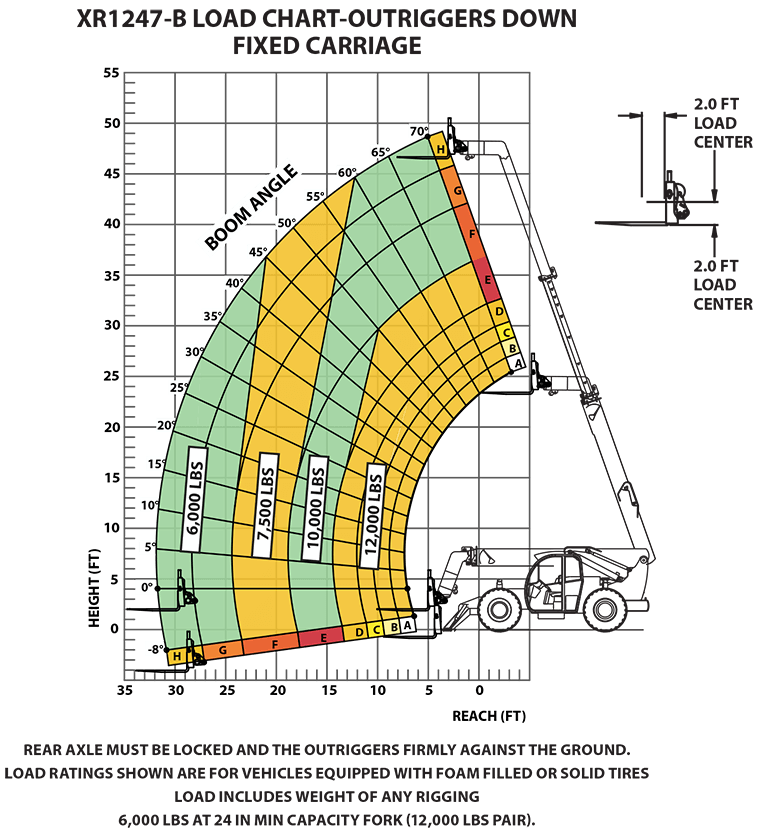

Load Chart
All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.
To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:
Ahern Chile is authorized to carry our Xtreme warranty repairs. For further details, please visit our warranty page.
Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
